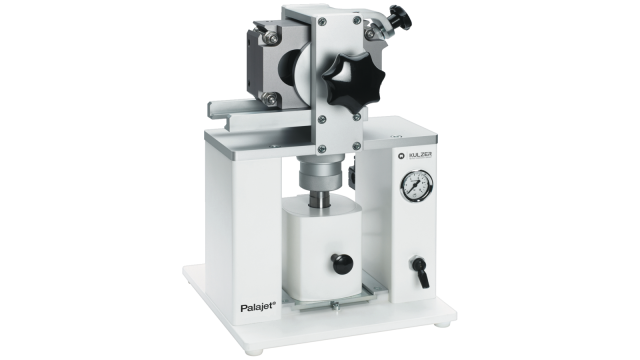

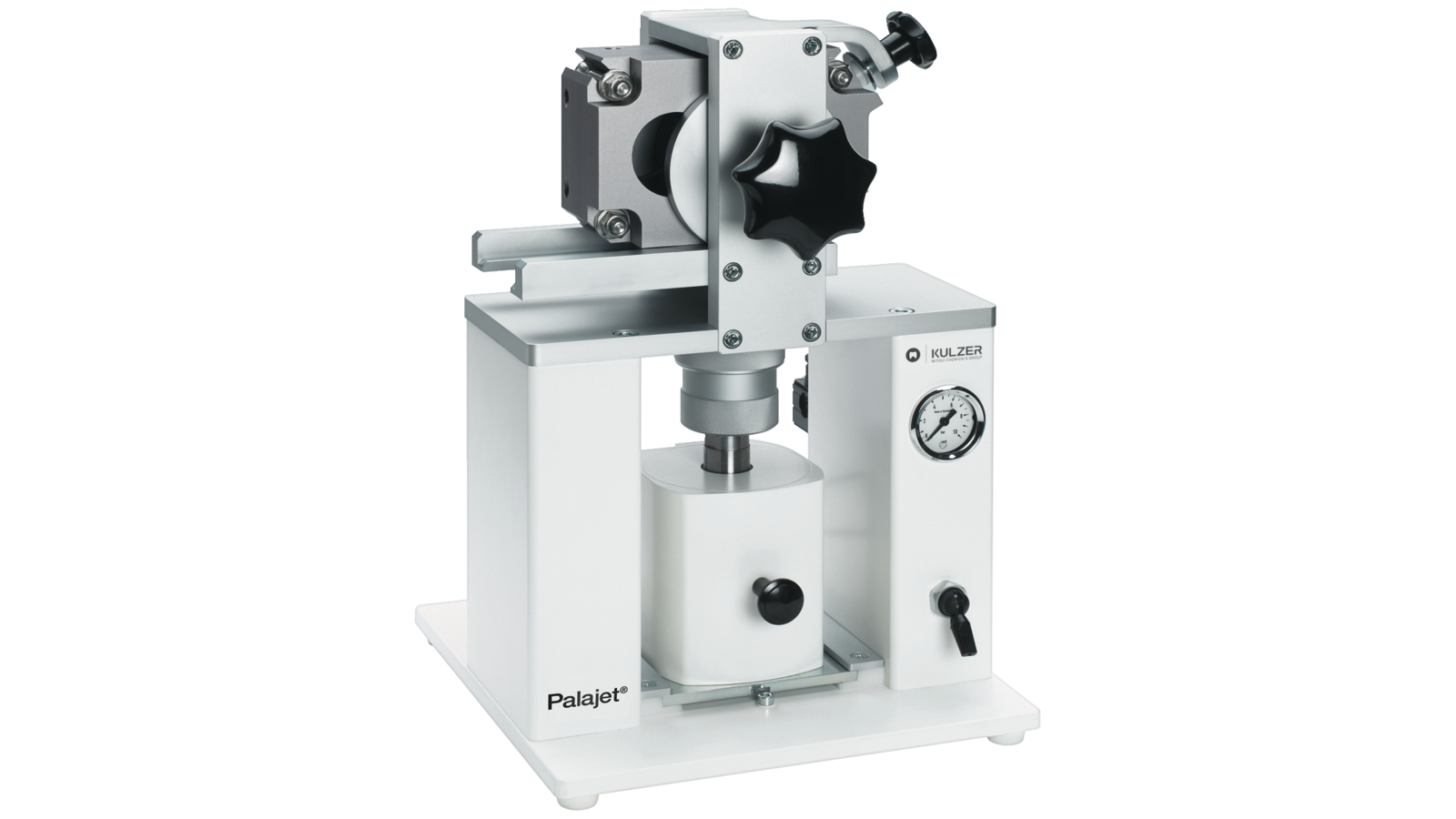

Palajet®
Jedinica za ubrizgavanje komprimiranog zraka za izvrsno pristajanje proteza.

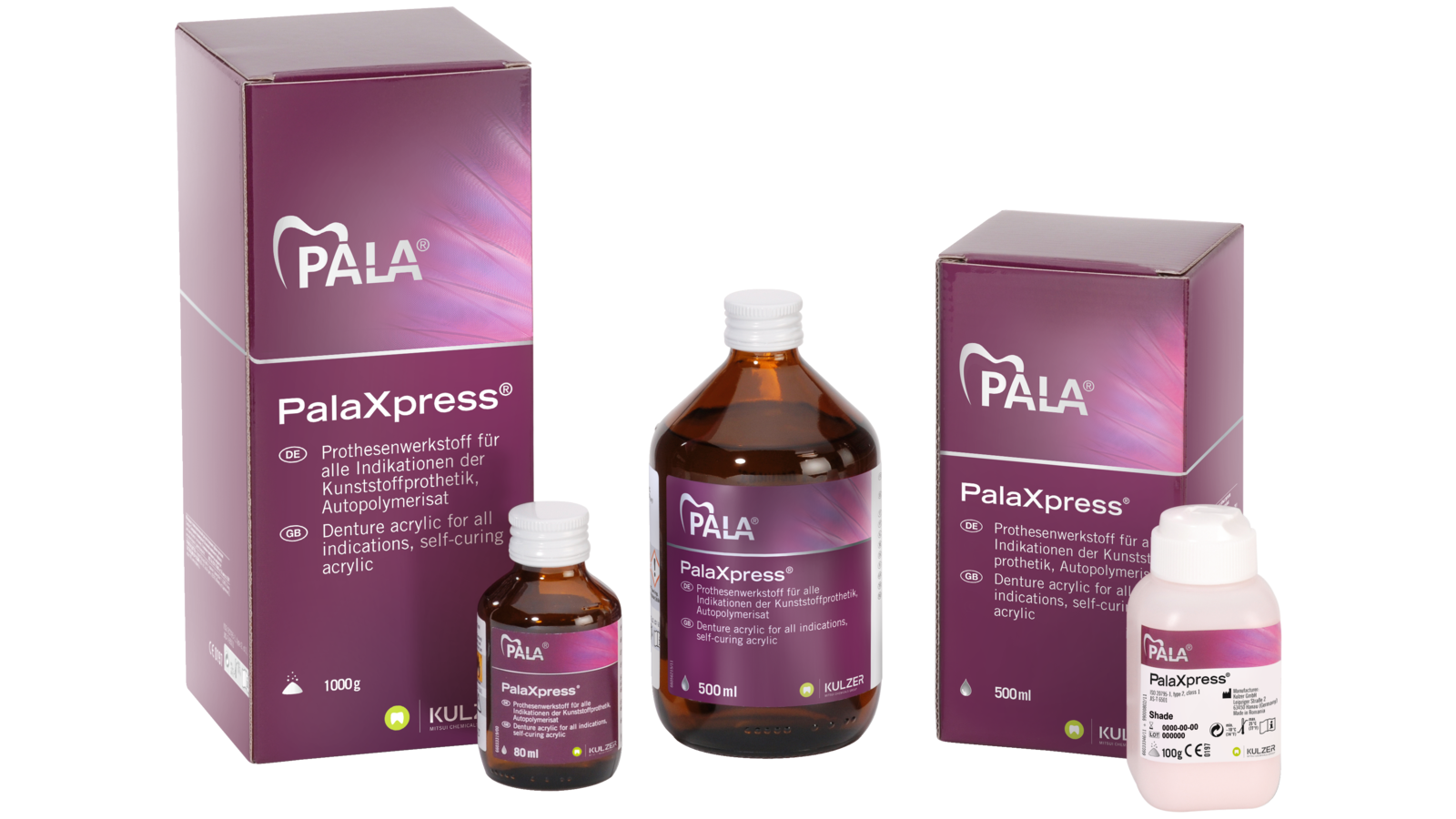

Jedinica za ubrizgavanje za izradu potpune proteze savršeno je dizajnirana za svojstva materijala naših PalaXpress protetskih akrila.
Dobro osmišljen sustav doziranja PalaXpress uklanja pogreške u doziranju i osigurava dosljedna svojstva obrade. Rezultat je uvjerljiv – kako u jednostavnosti izrade tako i u kvaliteti: potpune proteze visoke kvalitete s mnogim prednostima u usporedbi s konvencionalnim sustavima.
Prednosti
- jednostavna izrada potpunih proteza
- bez podešavanja vertikalne dimenzije okluzije
- visoka točnost pristajanja, savršeno nasjedanje
- gotovo bez podrezivanja
- jednostavan rad
- rad bez održavanja
- potreban je samo priključak za komprimirani zrak (4 bara)
- nije potrebna primjena sile
PRIMJENA
Investing and boil out of the Duoflask
Specifikacije
| Technical specifications for Palajet | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Compressed air connection | 5 - 10 bar | |||||||||||||
| Rated pressure | 4 bar | |||||||||||||
| Plunger speed | 0 – 50 mm/s | |||||||||||||
| Compression force on the filling cylinder | Approx. 2kN = 200 kp (kilopound) | |||||||||||||
| Dimensions W x H x D in mm: | 290 x 400 x 265 | |||||||||||||
| Weight in kg | Approx. 13.5 | |||||||||||||
Scope of supply :
- Injection cylinder including cover
- Palajet Duoflask (including hexagonal socket wrench [13 mm], opening key for flasks, spacer, place-holder)
- 12 x injection cylinder cartridges
- 12 x cover cartridges
- 50 x sealing discs
- Measurement cup
- Mixing cup
- Channel wax (33 strips Ø 7mm and 30 strips Ø 3mm)
- Timer
- Flask basket
- Flask tray with pins
Pribor

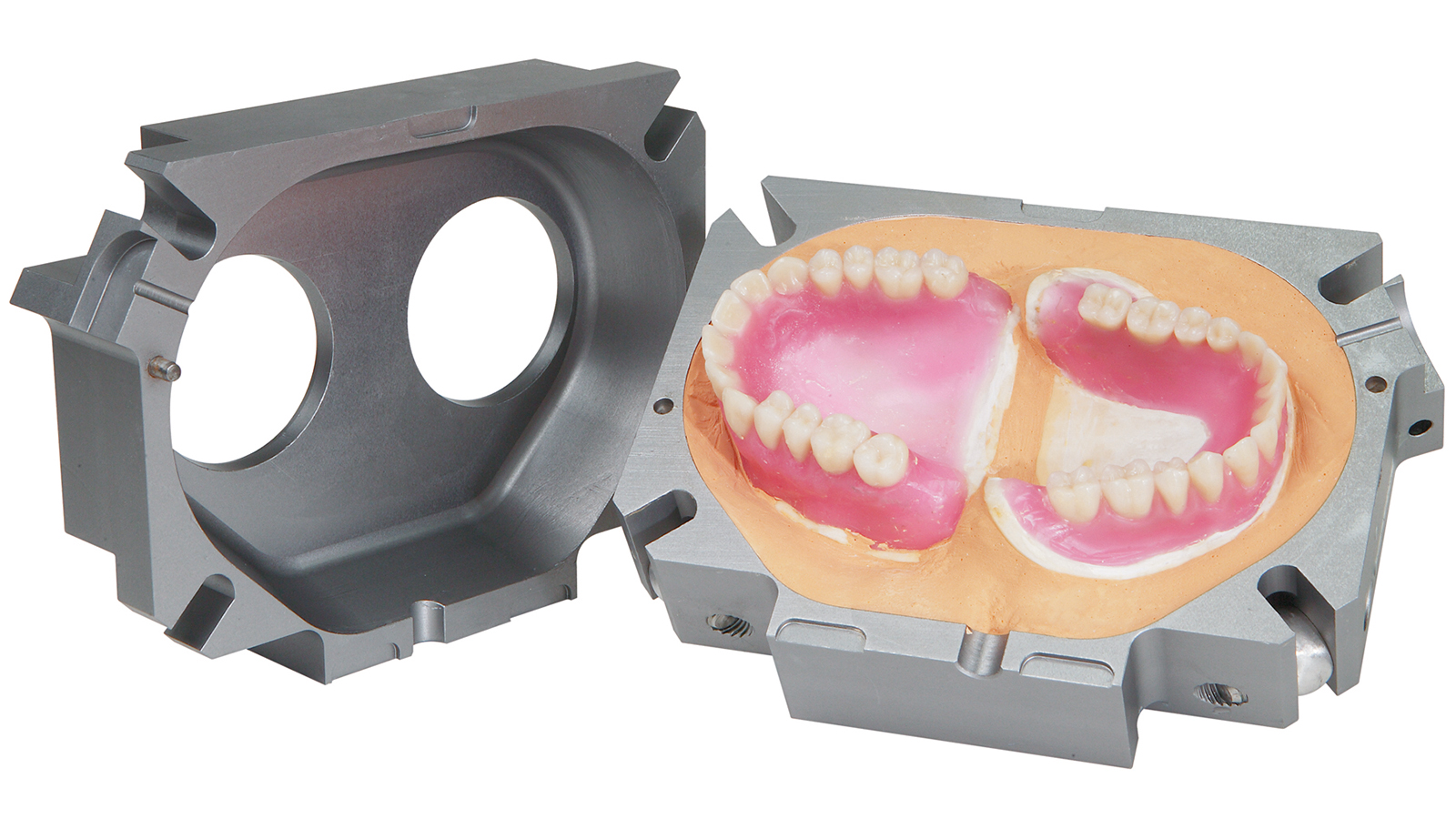

Palajet Duoflask - double flask
Preparing and polymerising two dentures in one go - this is no longer a problem with the Palajet Duoflask in combination with the Palajet injection unit.
Benefits:
- Total preparation of complete full upper and lower dentures
- Save plaster
- Cuts the time required for completion in half
- Use placeholder if preparing only one denture
Art. code: 6471 5798
Scope of supply: Palajet Duoflask including socket wrench and spacer, placeholder

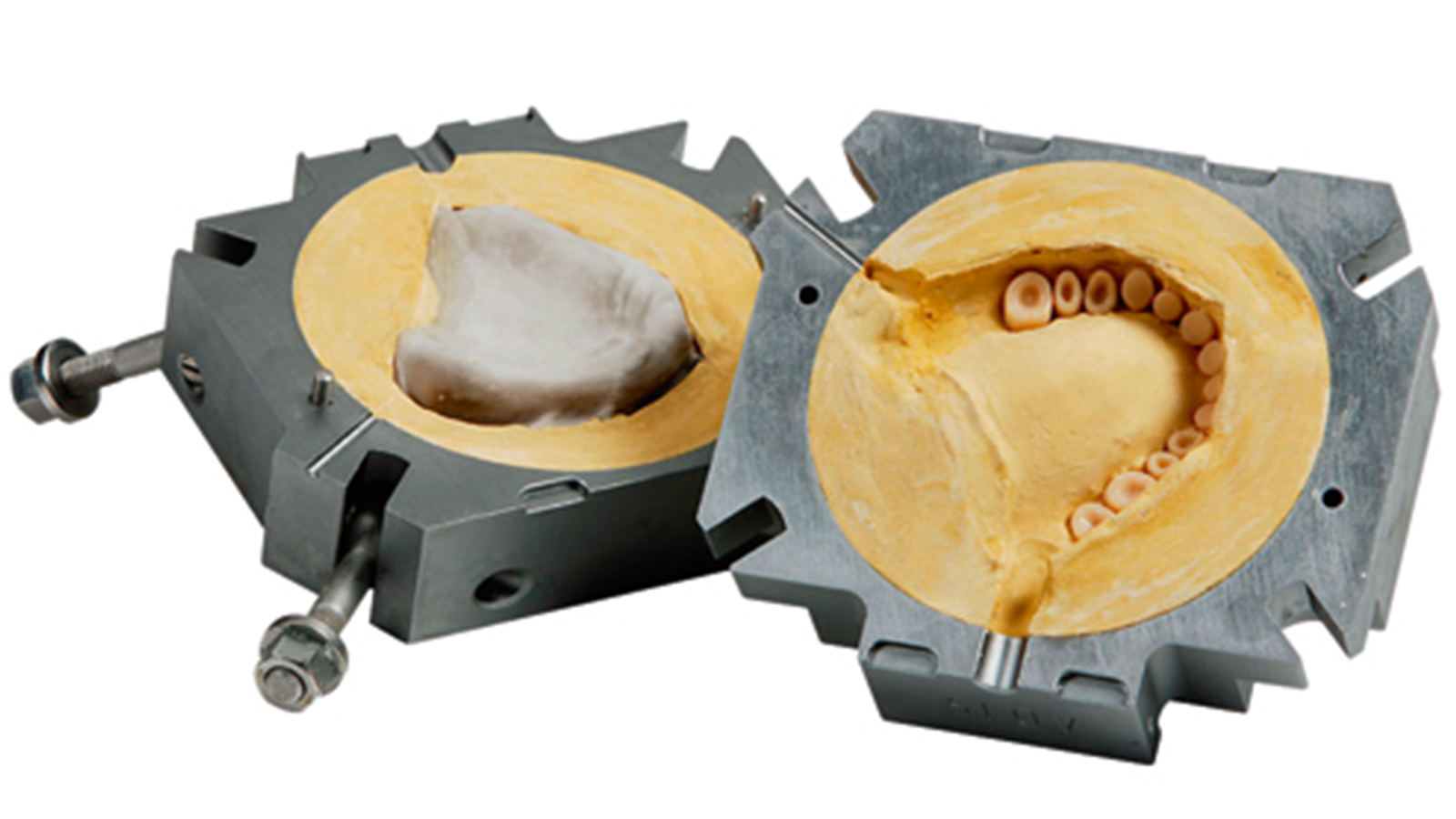

Palajet Single flask - single flask
The completed wax setup can also be invested in a single flask and injected using Palajet as usual
Benefits:
- Familiar processing
- Simple handling
- Shorter casting sprues
Art. code: 6471 0524

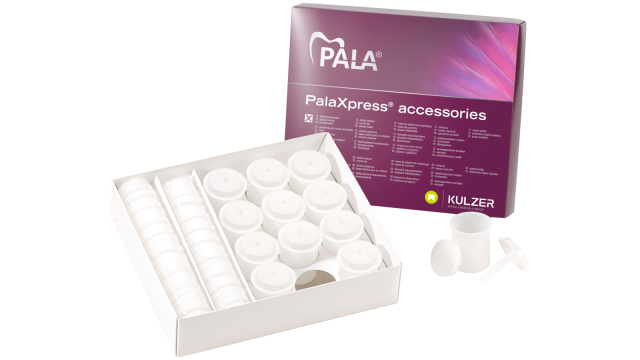

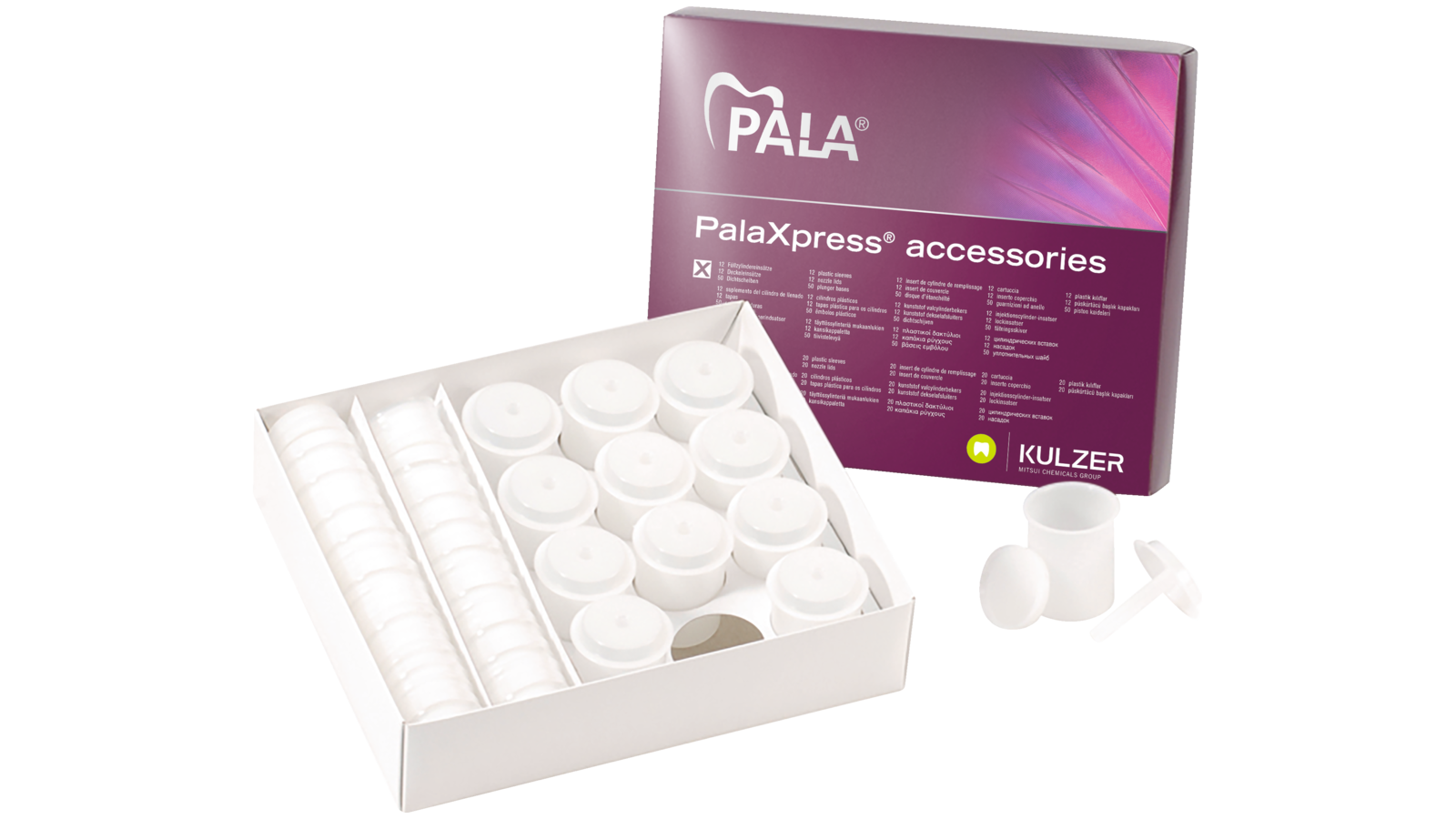

PalaXpress injection cylinder cartridges
For use in the Palajet injection unit
Delivery form:
- 12 covers and 50 sealing discs
Art. code: 6471 0519
- 20 cover and 20 sealing discs
Art. code: 6471 4213

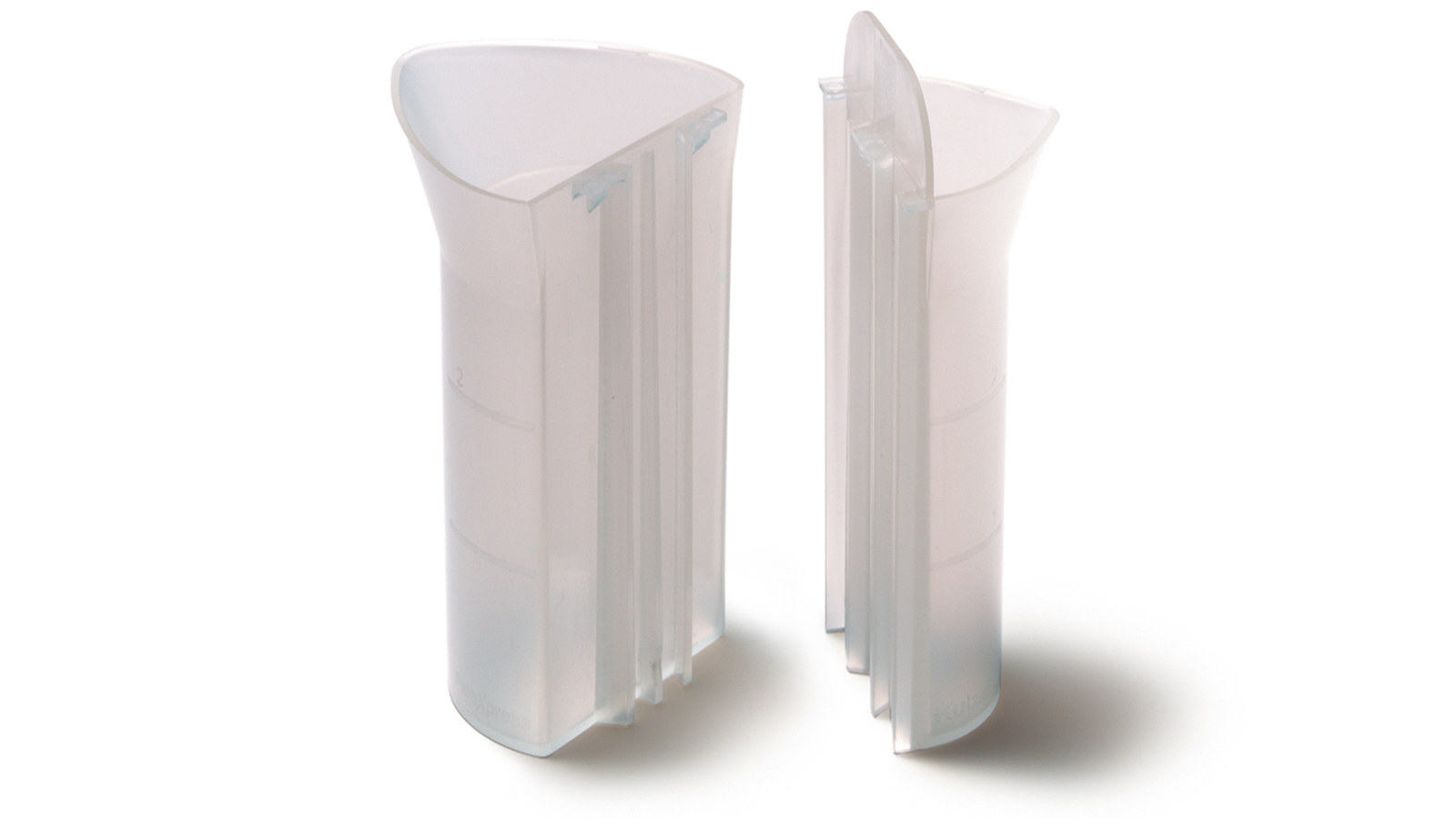

PalaXpress dosing cup
For measuring the correct ratio of liquid and powder for use with the Palajet system.
Art. code: 6471 0521
